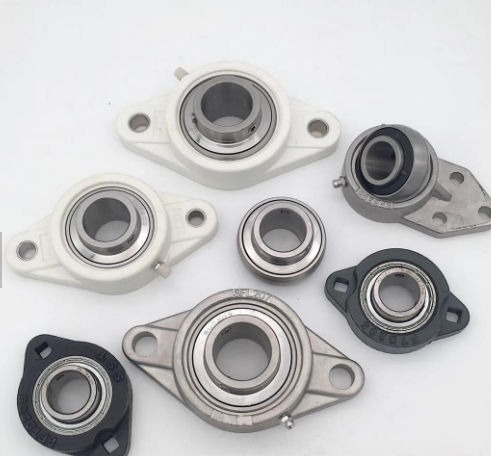

Cast Iron Housing Mounted Bearings

Get a Price/Quote

MOQ : 1 Piece

Cast Iron Housing Mounted Bearings Specification

Retainer
Yes

Cage Material
Steel

Lubrication Type
Grease Lubrication

Precision Rating
P6

Thickness
32 mm

Inside Diameter
35 mm

Bearing Type
Pillow Block

Material
Cast Iron

Structure
Spherical

Seals Type
Double Sealed

Number Of Rows
Single Row

Bore Size
35 mm

Outside Diameter
80 mm

Limiting Speed
3500 RPM

Load Capacity
2500 kg

Operating Temperature
-20C to 120C

Mounting Type
Flange or Pillow Block

Interchangeable Insert Bearing
Yes

Corrosion Resistance
Yes

Grease Fitting
Provided

Housing Finish
Powder Coated

Application
Conveyors, Agricultural Machinery, Industrial Equipment

Cast Iron Housing Mounted Bearings Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shanghai/Qingdao/Guangzhou

Supply Ability
10000 Pieces Per Month

Delivery Time
3-5 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
Single Cage/ Wooden cage/ Pallet/ As required

Main Domestic Market
All India

Certifications
ISO 9001:14001 ISO 9001:2008

About Cast Iron Housing Mounted Bearings

To provide utmost satisfaction to our valuable clients, we have been engaged in manufacturing and supplying top-grade Cast Iron Housing Mounted Bearings. These bearings find their applications in industrial machines for enabling rotation and reducing stress. Offered bearings are manufactured using cast iron at ultra-modern production unit by our adept professionals. Provided bearings are tested on various parameters for ensuring defect-free delivery to clients. In addition to this, offered Cast Iron Housing Mounted Bearings are highly appreciated among clients due to their accurate dimension, enhanced durability and rust-resistant surface.

Technical Specifications:

Unit No.	Dimensions(mm)												Bolt Size	Bearing No.	Housing No.	Weight
Unit No.	d	h	a	e	b	s1	s2	g	w	t	B	n	mm	Bearing No.	Housing No.	(kg)
UCP201	12	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC201	P203	0.69
UCP202	15	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC202	P203	0.69
UCP203	17	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC203	P203	0.68
UCP204	20	33.3	127	95	38	13	19	15	71	48	34.1	14.3	M10	UC204	P204	0.66
UCP205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	P205	0.81
UCP206	30	42.9	165	121	48	17	20	17	84	53	38.1	15.9	M14	UC206	P206	1.24
UCP207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	P207	1.58
UCP208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	P208	1.89
UCP209	45	54	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	P209	2.14
UCP210	50	57.2	200	159	60	20	23	21	113	74.5	51.6	19	M16	UC210	P210	2.66
UCP211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	P211	3.31
UCP212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	P212	4.9
UCP213	65	76.2	265	203	70	25	28	27	150	89	65.1	25.4	M20	UC213	P213	5.15
UCP214	70	79.4	266	210	72	25	28	27	156		74.6	30.2	M20	UC214	P214	6.2
UCP215	75	82.6	275	217	74	25	28	28	162		77.8	33.3	M20	UC215	P215	7.16
UCP216	80	88.9	292	232	78	25	28	30	174		82.6	33.3	M20	UC216	P216	8.1
UCP217	85	95.2	310	247	83	25	28	32	185		85.7	34.1	M20	UC217	P217	9.81
UCP218	90	101.6	327	262	88	27	30	33	198		96	39.7	M22	UC218	P218	11.96

Versatile Applications and Reliable Durability

Our housing-mounted bearings are suitable for a broad spectrum of equipment, including conveyors, agricultural machinery, and heavy industrial systems. Crafted from high-grade cast steel or iron with a powder-coated finish, they withstand harsh operational environments while maintaining dependable function and extending service life.

Built for Efficiency and Ease of Maintenance

The bearings feature double-sealed flanged bushes and a provided grease fitting, simplifying maintenance and safeguarding against contaminants. With an interchangeable insert design, these units facilitate swift replacement and minimal downtime, making them a practical choice for industries demanding reliability.

FAQ's of Cast Iron Housing Mounted Bearings:

Q: How do I install Cast Iron Housing Mounted Bearings with a pillow block or flange mount?

A: Begin by aligning the bearing housing with the mounting surface on your conveyor, agricultural, or industrial equipment. Secure the housing firmly using suitable bolts and ensure the shaft fits perfectly within the 35 mm bore. Verify correct positioning before tightening all fasteners, then use the provided grease fitting to apply lubrication as recommended.

Q: What is the operational temperature range for these mounted bearings?

A: These cast iron housing mounted bearings can operate efficiently in environments with temperatures ranging from -20C to 120C, making them ideal for both indoor and outdoor machinery applications.

Q: When should I perform maintenance on these pillow block bearings?

A: Regular maintenance depends on operational intensity, but typically, you should inspect and lubricate the bearings every few months using the grease fitting. Clean the exterior surface as necessary, especially in demanding or dirty environments, to maintain optimal bearing performance.

Q: Where can these bearings be applied most effectively?

A: These bearings are designed for use in conveyors, agricultural machinery, and various types of industrial equipment. Their robust structure and corrosion resistance make them suitable for demanding settings requiring high load capacities and reliable operation.

Q: What process should I follow to replace the interchangeable insert bearing?

A: To replace the insert bearing, first remove the housing from the equipment and disassemble the current insert. Install the new insert in the same orientation, ensuring a secure and precise fit. Reattach the housing and check for proper alignment before resuming operation.

Q: How does the powder-coated finish benefit my application?

A: The durable powder-coated finish enhances corrosion resistance, ensuring longevity and reliable protection against harsh chemicals or environmental exposure, which is especially beneficial in agricultural and industrial settings.

Q: What advantages do double-sealed and spherical bush types provide?

A: Double-sealed bearings offer superior protection from dust and moisture, while the spherical bush structure allows for slight misalignments during operation, ensuring smoother, quieter functioning and reduced risk of premature wear.
